          Metal Processing - CNC Turning- and Milling Center

          Machinelijst: CNC draai- en freescentrum


          CNC Turning- and Milling Center

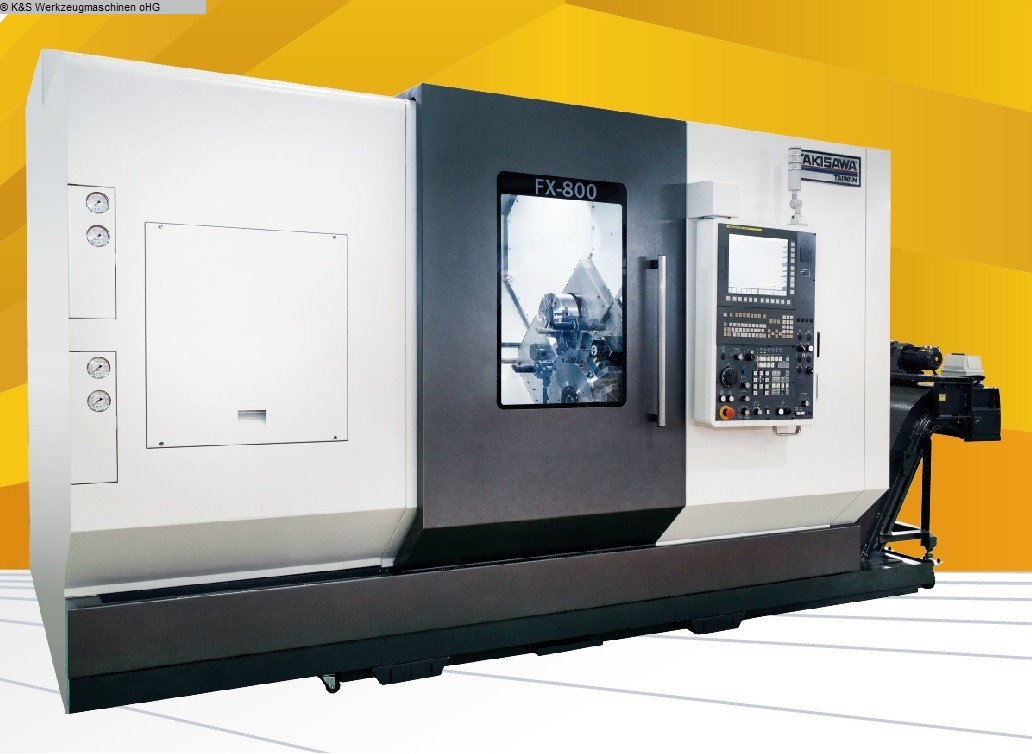

          gebruikte draaibanken CNC draai- en freescentrum TAKISAWA TAIWAN FX 800


          • K&S Werkzeugmaschinen oHG
          • Im Bolfeld 2
          • 31711 Luhden
          • Deutschland

          • +49 (0) 5722-99 20 22
            +49 (0) 5722-99 20 29
          • info@ks-werkzeugmaschinen.de
            www.ks-werkzeugmaschinen.de
          #2012-80008 · CNC Turning- and Milling Center

          TAKISAWA TAIWAN - FX 800 - - 2019 - Fanuc 0iTF Manual Guide

          Technical details
          turning diameter max. 260 mm︱turning length max. 657 mm︱control Fanuc 0iTF Manual Guide︱standard turning dia. 210 mm︱distance between spindles max. 1.030 mm︱distance between spindles min. 300 mm︱Main spindle: ︱Turning spped range - main spindle 4.500 min/-1︱power capacity - main spindle 15 / 11 kW︱spindle nose JIS A2-8 ︱spindle bearing diameter 110 mm︱spindle bore 76 mm︱max. bar capacity 65 mm︱C-Axis 0,001 ︱chucking diameter 200 mm︱Subspindle: ︱Spindle speed range Subspindle 5.000 min/-1︱power capacity - Subspindle 11 / 7,5 kW︱spindle nose JIS A2-6 ︱spindle bearing diameter 100 mm︱
          EMO Exhibition Machine for Special Sales Price limited until 21. Sept. 2019 - subject to the goods being unsold TAKISAWA TAIWAN Multi-Purpose Turning and Milling Machine for process intregration and high productivity The FX-800 is designed for both easy operation and easy acces for routine maintenace. An upper T16 turret with Y-Axis coupled with a lower 16 turret allows great flexibility ans speed for a wide variety of complex turning and milling applications making the FX-800 the perfect machine for short cycle times and high volumes. Heavy duty twin turrets and highly rigid twin spindles with precise indexing greatly enhance machining accuracy.
            turning diameter max. 260 mm
            turning length max. 657 mm
            control Fanuc 0iTF Manual Guide
            standard turning dia. 210 mm
            distance between spindles max. 1.030 mm
            distance between spindles min. 300 mm
            Turning spped range - main spind. 4.500 min/-1
            power capacity - main spindle 15 / 11 kW
            spindle nose JIS A2-8
            spindle bearing diameter 110 mm
            spindle bore 76 mm
            max. bar capacity 65 mm
            C-Axis 0,001
            chucking diameter 200 mm
            Spindle speed range Subspindle 5.000 min/-1
            power capacity - Subspindle 11 / 7,5 kW
            spindle nose JIS A2-6
            spindle bearing diameter 100 mm
            Description :
            EMO Exhibition Machine for Special Sales Price limited until 21. Sept. 2019 -
            subject to the goods being unsold

            TAKISAWA TAIWAN

            Multi-Purpose Turning and Milling Machine for process intregration
            and high productivity

            The FX-800 is designed for both easy operation and
            easy acces for routine maintenace.

            An upper T16 turret with Y-Axis coupled with a lower
            16 turret allows great flexibility ans speed for a wide
            variety of complex turning and milling applications making
            the FX-800 the perfect machine for short cycle times and
            high volumes.

            Heavy duty twin turrets and highly rigid twin spindles
            with precise indexing greatly enhance machining accuracy.
          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum DMG MORI NTX 2000/1500 S2 2e


          • Stiens Werkzeugmaschinen GmbH
          • Mittelweg 92
          • 59302 Oelde
          • Deutschland

          • +49 252283490
            (0049) - 2522 - 8349-20
          • info@stiens.de
            www.stiens.de
          #1039-8621 · CNC Turning- and Milling Center

          DMG MORI - NTX 2000/1500 S2 2nd - - 2019 - F31iB5 Fanuc

          Technical details
          swing diameter max. 700 mm︱turning length max. 1.538 mm︱control F31iB5 Fanuc︱max. turning diameter 670 mm︱max. bar capacity 65 mm︱distance between spindles 1.822 mm︱Main spindle: ︱max. spindle speed 5.000 min/-1︱power capacity - main spindel 15 / 11 kW︱max. bar capacity 65 mm︱chucking diameter 250 mm︱Subspindle: ︱max. spindle speed 5.000 min/-1︱power capacity - Sub spindle 15 / 11 kW︱max. bar capacity (65) mm︱chucking diameter 250 mm︱Milling Spindle: ︱max. spindle speed 12.000 min/-1︱power capacity - milling spindle 22 kW︱max. Torque 122 Nm︱
          CNC-Turning- and Millingcenter DMG MORI - NTX 2000/1500 S2 2nd - like new! Only ca. 21h Operating-Hours! - 5 Axis - Main-, Sub- and Swivel-Milling-Spindle
            swing diameter max. 700 mm
            turning length max. 1.538 mm
            control F31iB5 Fanuc
            max. turning diameter 670 mm
            max. bar capacity 65 mm
            distance between spindles 1.822 mm
            max. spindle speed 5.000 min/-1
            power capacity - main spindel 15 / 11 kW
            max. bar capacity 65 mm
            chucking diameter 250 mm
            max. spindle speed 5.000 min/-1
            power capacity - Sub spindle 15 / 11 kW
            max. bar capacity (65) mm
            chucking diameter 250 mm
            max. spindle speed 12.000 min/-1
            power capacity - milling spindle 22 kW
            max. Torque 122 Nm
            Description :
            CNC-Turning- and Millingcenter
            DMG MORI - NTX 2000/1500 S2 2nd

            - like new! Only ca. 21h Operating-Hours!
            - 5 Axis
            - Main-, Sub- and Swivel-Milling-Spindle

          Datasheet
          Request / Contact
          gebruikte Draaibanken CNC Draai- en Freescentrum MAZAK Quick Turn Smooth 250 MSY


          • MAMACH Machinenhandel BV
          • Campagneweg 10
          • 4761 RM Zevenbergen
          • Niederlande

          • +31 (0)168325354
          • info@mamach.nl
            www.mamach.nl
          #2041-V2014 · CNC Turning- and Milling Center

          MAZAK - Quick Turn Smooth 250 MSY - - 2018 - Mazatrol Smooth G

          Technical details
          turning diameter 276 mm︱turning length 200 mm︱spindle bore diameter 80 mm︱Spindle Speed 4.000 1/min︱spindle motor 26 kW︱X-Axis movement 234 mm︱Y-Axis movement 100 mm︱Z-Axis movement 625 mm︱W-axis movement (subspindle to mainspindle) 585 mm︱Minimum indexing C-Axis main Spindle 0,0001 °︱Minimum Indexing C Axis Sub Spindle 0,001 °︱Number of tools on turret 12 ︱Number of driven tools 12 x︱Spindle speed driven tools 5.000 1/min︱Spindle motor driven tools 6 kW︱Tool type Mazak VDI ︱control Mazatrol Smooth G ︱Length 2760 mm︱Width 1845 mm︱Height 1857 mm︱
            turning diameter 276 mm
            turning length 200 mm
            spindle bore diameter 80 mm
            Spindle Speed 4.000 1/min
            spindle motor 26 kW
            X-Axis movement 234 mm
            Y-Axis movement 100 mm
            Z-Axis movement 625 mm
            W-axis movement (subspindle to m. 585 mm
            Minimum indexing C-Axis main Spi. 0,0001 °
            Minimum Indexing C Axis Sub Spin. 0,001 °
            Number of tools on turret 12
            Number of driven tools 12 x
            Spindle speed driven tools 5.000 1/min
            Spindle motor driven tools 6 kW
            Tool type Mazak VDI
            control Mazatrol Smooth G
            Length 2760 mm
            Width 1845 mm
            Height 1857 mm
          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum DMG MORI NLX 2000 SY / 500


          • Stiens Werkzeugmaschinen GmbH
          • Mittelweg 92
          • 59302 Oelde
          • Deutschland

          • +49 252283490
            (0049) - 2522 - 8349-20
          • info@stiens.de
            www.stiens.de
          #1039-8488 · CNC Turning- and Milling Center

          DMG MORI - NLX 2000 SY / 500 - - 2018 - M 730 UM CELOS

          Technical details
          turning diameter max. 366 mm︱turning length 510 mm︱control M 730 UM CELOS︱greates pass round over bed 923,8 mm︱Swing dia. over traverse guideway 755 mm︱standard turning dia. 275 mm︱distance between spindles 500 mm︱Main spindle: ︱turning speed range - main spindle 5.000 min/-1︱power capacity - main spindel 15 / 11 kW︱spindle nose JIS A-6 ︱spindle bearing diameter 120 mm︱spindle bore 73 mm︱max. bar capacity 65 mm︱usable bar diameter ( - ) mm︱C-Axis 0,001 °︱chucking diameter 200 mm︱Subspindel: ︱Spindle speed range subspindle 6.000 min/-1︱power capacity - Sub spindle 11 / 7,5 kW︱
          CNC - Turning- and MillingCenter DMG MORI - NLX 2000 SY / 500 - Subspindle - C-Axis - Y-Axis - Tool-Drive - Only 600h Operating-Hours
            turning diameter max. 366 mm
            turning length 510 mm
            control M 730 UM CELOS
            greates pass round over bed 923,8 mm
            Swing dia. over traverse guidewa. 755 mm
            standard turning dia. 275 mm
            distance between spindles 500 mm
            turning speed range - main spind. 5.000 min/-1
            power capacity - main spindel 15 / 11 kW
            spindle nose JIS A-6
            spindle bearing diameter 120 mm
            spindle bore 73 mm
            max. bar capacity 65 mm
            usable bar diameter ( - ) mm
            C-Axis 0,001 °
            chucking diameter 200 mm
            Spindle speed range subspindle 6.000 min/-1
            power capacity - Sub spindle 11 / 7,5 kW
            Description :
            CNC - Turning- and MillingCenter
            DMG MORI - NLX 2000 SY / 500

            - Subspindle
            - C-Axis
            - Y-Axis
            - Tool-Drive

            - Only 600h Operating-Hours


          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum DMG MORI NLX 1500 SY / 500


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17752 · CNC Turning- and Milling Center

          DMG MORI - NLX 1500 SY / 500 - - 2017 - Mapps M730 UM

          Technical details
          max. turning diameter 386 mm︱turning length 515 mm︱control Mapps M730 UM ︱greates pass round over bed 924 mm︱swing diameter over slide rest 755 mm︱standard turning dia. 271 mm︱bar material dia. 52 mm︱Main spindle: ︱spindle nose A2-5 ︱turning speed range - spindle 8000 min/-1︱drive capacity - spindle motor 15 kW︱spindle bearing diameter 100 mm︱spindle bore 61 mm︱bar material dia. 52 mm︱C-Axis 0,001 °︱Subspindel: ︱spindle nose A2-5 ︱turning speed range - spindle 8000 min/-1︱drive capacity - spindle motor 11 / 7,5 kW︱spindle bearing diameter 85 mm︱
          equipped with: - CNC control Mapps M730 UM with Celos - Main and counter spindle - X, Z and Y axes - Tool turret 20-fold - driven tool stations - Bar feeder IMCA BOSS 338 - tools - C-axes on both spindles - chip conveyor - High pressure pump 70 bar - Chuck 152mm 8800h Operating hours
            max. turning diameter 386 mm
            turning length 515 mm
            control Mapps M730 UM
            greates pass round over bed 924 mm
            swing diameter over slide rest 755 mm
            standard turning dia. 271 mm
            bar material dia. 52 mm
            spindle nose A2-5
            turning speed range - spindle 8000 min/-1
            drive capacity - spindle motor 15 kW
            spindle bearing diameter 100 mm
            spindle bore 61 mm
            bar material dia. 52 mm
            C-Axis 0,001 °
            spindle nose A2-5
            turning speed range - spindle 8000 min/-1
            drive capacity - spindle motor 11 / 7,5 kW
            spindle bearing diameter 85 mm
            Description :
            equipped with:
            - CNC control Mapps M730 UM with Celos
            - Main and counter spindle
            - X, Z and Y axes
            - Tool turret 20-fold
            - driven tool stations
            - Bar feeder IMCA BOSS 338
            - tools
            - C-axes on both spindles
            - chip conveyor
            - High pressure pump 70 bar
            - Chuck 152mm

            8800h Operating hours

          Datasheet
          Request / Contact
          gebruikte Draaibanken CNC Draai- en Freescentrum DOOSAN Puma SMX 3100S


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-18328 · CNC Turning- and Milling Center

          DOOSAN - Puma SMX 3100S - - 2017 - Siemens 840D

          Technical details
          turning diameter 660 mm︱turning length 1540 mm︱control Siemens 840D ︱greates pass round over bed 660 mm︱Main spindle: ︱turning speed range - main spindle 3000 min/-1︱power capacity - main spindel 30 / 25 kW︱spindle nose A2-11 ︱spindle bearing diameter 160 mm︱spindle bore 115 mm︱bar material dia. 102 mm︱C-Axis 0,0001 °︱chucking diameter 305 mm︱milling spindle ︱spindle turning speed range 12000 U/min︱spindle motor 26 / 18,5 kW︱axis stroke: ︱x-axis 630 mm︱z-axis 1585 mm︱y-axis 300 (+/- 150) mm︱
          CNC - Turning- and Millingcenter - CNC Siemens Sinumerik 840D - ATC with 80 tools ( ) - Through spindle coolant for milling spindle - Door interlock - Servo tail stock - Spindle head cooling system - Hydraulic unit - Automatic coolant system - Work lamp - Standard hydraulic chuck - X-axis linear scale Like new less used
            turning diameter 660 mm
            turning length 1540 mm
            control Siemens 840D
            greates pass round over bed 660 mm
            turning speed range - main spind. 3000 min/-1
            power capacity - main spindel 30 / 25 kW
            spindle nose A2-11
            spindle bearing diameter 160 mm
            spindle bore 115 mm
            bar material dia. 102 mm
            C-Axis 0,0001 °
            chucking diameter 305 mm
            spindle turning speed range 12000 U/min
            spindle motor 26 / 18,5 kW
            x-axis 630 mm
            z-axis 1585 mm
            y-axis 300 (+/- 150) mm
            Description :
            CNC - Turning- and Millingcenter
            - CNC Siemens Sinumerik 840D
            - ATC with 80 tools ( )
            - Through spindle coolant for milling spindle
            - Door interlock
            - Servo tail stock
            - Spindle head cooling system
            - Hydraulic unit
            - Automatic coolant system
            - Work lamp
            - Standard hydraulic chuck
            - X-axis linear scale

            Like new less used
          Datasheet
          Request / Contact
          tweedehands Draaibank CNC Draai- en freescentrum DMG MORI GILDEMEISTER CTX ECOTURN 510


          • FIMOTEC
          • 20 RUE AMPERE
          • 67500 HAGUENAU
          • Frankreich

          • +33 (0)388720247
            +33 (0)388936066
          • FIMOTEC@WANADOO.FR
            WWW.FIMOTEC.FR
          #1105-02726 · CNC Turning- and Milling Center

          DMG MORI GILDEMEISTER - CTX ECOTURN 510 - - 2016 - SIEMENS 840 SL SHOP TURN

          Technical details
          turning diameter 680 mm︱turning length 1050 mm︱control SIEMENS 840 SL SHOP TURN ︱turning dia. over face-slide 455 mm︱cross movement 300 mm︱turning speeds 3250 1/min︱spindle hollow 102 mm︱spindle 33/22 kW︱turret head 12 pos.︱turret head drive 4.2 kW︱rapid travel x/y/z 30 / 10/ 30 m/min︱rotational speed range of tools 4000 1/min︱speed range C-axis 100 1/min︱spindle bore 102 mm︱tailstock quill taper MT 5 ︱tailstock movement 6 m/min︱total power requirement 50 kVA︱weight of the machine ca. 8 t︱
          CTX ECOTURN 510 NEW DESIGN WITH MOWING TOOLS C AXIS + Y AXIS 1000 WORKING HOURS CNC CONTROL SIEMENS 840 SL SHOP TURN
            turning diameter 680 mm
            turning length 1050 mm
            control SIEMENS 840 SL SHOP TURN
            turning dia. over face-slide 455 mm
            cross movement 300 mm
            turning speeds 3250 1/min
            spindle hollow 102 mm
            spindle 33/22 kW
            turret head 12 pos.
            turret head drive 4.2 kW
            rapid travel x/y/z 30 / 10/ 30 m/min
            rotational speed range of tools 4000 1/min
            speed range C-axis 100 1/min
            spindle bore 102 mm
            tailstock quill taper MT 5
            tailstock movement 6 m/min
            total power requirement 50 kVA
            weight of the machine ca. 8 t
            Description :
            CTX ECOTURN 510 NEW DESIGN
            WITH MOWING TOOLS C AXIS + Y AXIS
            1000 WORKING HOURS
            CNC CONTROL SIEMENS 840 SL SHOP TURN

          Datasheet
          Request / Contact
          gebruikte Draaibanken CNC Draai- en Freescentrum GEORG Ultraturn 4000 MC


          • SK Maschinen-Service GmbH
          • Tackweg 4
          • 47918 Tönisvorst
          • Deutschland

          • 02151 79350
            02151 793535
          • info@sk-maschinen.de
            www.sk-maschinen.de
          #1038-80413 · CNC Turning- and Milling Center

          GEORG - Ultraturn 4000 MC - - 2016 -

          Technical details
          turning diameter over bed 4000 mm︱turning diameter over slide rest 3500 mm︱turning length 10950 mm︱turning speed range: 1-300 U/min︱power capacity 171 kW︱workpiece weight with 2 steadies 180000 kg︱max. workpiece weight between centres 75000 kg︱Total weight, approx. 350.000 kg︱dimensions of the machine ca. 28,6 x 10,8 x 4,1 m︱workpiece weight with one steady 140000 kg︱max. workpiece weight -without tailstock 10000 kg︱faceplate diameter 2200 mm︱turning speed range - C-axis 0-5 U/min︱max. torque on the working spindle ca. 7200 Nm︱tailstock - quill dia 530 mm︱quill adjustment - autom. and manual 100 mm︱tailstock adjustment 11134 mm︱tailstock travel rapid travel 0-4000 mm/min︱z-axis 15000 mm︱x-axis 1600 mm︱
          Turning- milling- grinding center for complete machining of turbine rotors, rolls and shafts. machine is in excellent condition with following configuration: - SIEMENS Sinumerik 840 D SL Operate - sviwel axi in ram (A-Axis) - turning attachment C6 - width 84 mm - turning attachment C8 - width 100 mm - milling extension - 81 kW - angle milling head, Standard - 81 kW - angle milling head, narrow - 10 kW - universal milling head - 30 kW - milling head for milling discs (Slotter) - 81 kW - grinding attachment for external grinding - 30 kW - 3 steady bases - 2 hydrodynamic steady tops - 2 workpiece clamings for hydrodynamic steady tops - 10 exchangable bearing shells for steady tops - 1 roller steady in C-execution - 1 hydraulic workpiece release - cooling system - dust exhaust system - plastic chips exhaust - video-control - Pick-up station for 8 heads - storage place for 3 milling discs - pillar sviweling crane - 250 kg - automatic tool changing system - 102 Plätze - tool cleaning system - tool breakage monitoring - workpiece measuring system Renishaw - 2-point measuring system - complete housing - Georg Maintenance System (GMS) Basis plus vibration monitoring
            turning diameter over bed 4000 mm
            turning diameter over slide rest 3500 mm
            turning length 10950 mm
            turning speed range: 1-300 U/min
            power capacity 171 kW
            workpiece weight with 2 steadies 180000 kg
            max. workpiece weight between ce. 75000 kg
            Total weight, approx. 350.000 kg
            dimensions of the machine ca. 28,6 x 10,8 x 4,1 m
            workpiece weight with one steady 140000 kg
            max. workpiece weight -without t. 10000 kg
            faceplate diameter 2200 mm
            turning speed range - C-axis 0-5 U/min
            max. torque on the working spind. ca. 7200 Nm
            tailstock - quill dia 530 mm
            quill adjustment - autom. and ma. 100 mm
            tailstock adjustment 11134 mm
            tailstock travel r. 0-4000 mm/min
            z-axis 15000 mm
            x-axis 1600 mm
            Description :
            Turning- milling- grinding center for complete machining of turbine rotors,
            rolls and shafts.
            machine is in excellent condition with following configuration:
            - SIEMENS Sinumerik 840 D SL Operate
            - sviwel axi in ram (A-Axis)
            - turning attachment C6 - width 84 mm
            - turning attachment C8 - width 100 mm
            - milling extension - 81 kW
            - angle milling head, Standard - 81 kW
            - angle milling head, narrow - 10 kW
            - universal milling head - 30 kW
            - milling head for milling discs (Slotter) - 81 kW
            - grinding attachment for external grinding - 30 kW
            - 3 steady bases
            - 2 hydrodynamic steady tops
            - 2 workpiece clamings for hydrodynamic steady tops
            - 10 exchangable bearing shells for steady tops
            - 1 roller steady in C-execution
            - 1 hydraulic workpiece release
            - cooling system
            - dust exhaust system
            - plastic chips exhaust
            - video-control
            - Pick-up station for 8 heads
            - storage place for 3 milling discs
            - pillar sviweling crane - 250 kg
            - automatic tool changing system - 102 Plätze
            - tool cleaning system
            - tool breakage monitoring
            - workpiece measuring system Renishaw
            - 2-point measuring system
            - complete housing
            - Georg Maintenance System (GMS) Basis plus vibration monitoring

          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum MAIER MLK 36D


          • ProdEq Trading
          • Reckholder 1
          • 9527 Niederhelfenschwil
          • Schweiz

          • (0041)71 - 948 7060
            (0041)71 - 948 7069
          • info@prodeq.ch
            www.prodeq.ch
          #1045-39768 · CNC Turning- and Milling Center

          MAIER - MLK 36D - - 2016 - SIEMENS 840 D

          Technical details
          turning diameter 36 mm︱turning length mm︱control ︱-------------------------------------------------- ︱BASIC FUNCTIONS ︱- number of spindles 3 ︱WORKING RANGE TURNING ︱- turning diameter (max) 36 mm︱MAIN SPINDLE ︱- spindle revolutions (max) 6000 /min︱- spindle positioning 5 °︱- c-axis: yes ︱COUNTER SPINDLE ︱- spindle revolutions (max) 6000 /min︱- spindle positioning 5 °︱- c-axis: yes ︱ELECTRICAL SPECIFICATIONS ︱- total power consumption 25.7 kW︱- mains voltage 400 V︱- mains frequency 50 Hz︱
            turning diameter 36 mm
            turning length mm
            - number of spindles 3
            - turning diameter (max) 36 mm
            - spindle revolutions (max) 6000 /min
            - spindle positioning 5 °
            - c-axis: yes
            - spindle revolutions (max) 6000 /min
            - spindle positioning 5 °
            - c-axis: yes
            - total power consumption 25.7 kW
            - mains voltage 400 V
            - mains frequency 50 Hz
          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum WEMAS TURN 300 CNC Y


          • Glaub Werkzeugmaschinen GmbH
          • Industriestraße 36
          • 74194 Neuenstadt am Kocher
          • Deutschland

          • +49 (0) 7139 9366 744
            +49 (0) 7139 9365 794
          • service@gwg-maschinen.com
            www.gwg-maschinen.com
          #2029-1145 · CNC Turning- and Milling Center

          WEMAS - TURN 300 CNC Y - - 2016 - Siemens

          Technical details
          turning diameter 300 mm︱turning length 410 mm︱control Siemens ︱weight of the machine ca. 6640 kg︱dimensions of the machine ca. 400 x 2200 x 2200 mm︱
          Exhibition machine - was at the fair in Moscow. Will be transported to Germany. Special Price!
            turning diameter 300 mm
            turning length 410 mm
            control Siemens
            weight of the machine ca. 6640 kg
            dimensions of the machine ca. 400 x 2200 x 2200 mm
            Description :
            Exhibition machine - was at the fair in Moscow. Will be transported to Germany.
            Special Price!
          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum TAKISAWA TMM-250M1


          • Knops Werkzeugmaschinen
          • Ronsdorfer Str. 143
          • 40233 Düsseldorf
          • Deutschland

          • 0211 8793140
            0211 8793134
          • maschinen@knops.de
            www.knops.de
          #1022-E05603 · CNC Turning- and Milling Center

          TAKISAWA - TMM-250M1 - - 2016 - Fanuc Series 31i-Model B

          Technical details
          turning diameter 350 mm︱turning length 800/200 mm︱control Fanuc Series 31i-Model B ︱total power requirement 8,5 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          First machine installation January 2017 Please note the hours of operation on picture 2! Special feature of the machine: This machine has 2 spindles and 2 revolvers. She is able to work with both revolvers at one Spindle (4 axes) to work. With collet chuck + collets 2 x 3 jaw chucks diameter 200 mm for main and counter spindle Various standard and driven holders The machine is sold without bar loader. Basic equipment of the machine • 32 bit FANUC CNC control with Manual Guide i (Tiwap) and Internet interface • 10.4 inch LCD color screen • AC-digital FANUC spindle and axis motors • Both spindles with C-axis (built-in motors with oil cooler) • both spindles with disc brake, • Drive power left spindle 15/22 KW, • Torque max. 433 Nm, • speed max. 4,000 min / -1, • Spindle nose A2-8 with protective flange on cylindrical 220 mm, Li. Spindle bore 86 mm, • Bar passage 76 mm, • Clamping cylinder type SMW VNK 170/77, • drive power right spindle 11 / 18,5 KW, • Torque max. 326 Nm, • speed max. 4,000 min / -1, • Spindle nose A2- 6 with protection flange on cylindrical 170 mm, • Right spindle bore 63 mm1 • Bar passage 51 mm, • Clamping cylinder type SMW VNK 130/52, • 2 VDI 40 turrets with 15 tool places each (Double holders are possible, therefore up to 60 tool slots in the machine) • Max. 15 driven tool holders per revolver, • Y-axis 100 mm (+/- 50 mm) guided flat in the upper turret, • M-function for opening / closing the chucks, • Drive power of the driven tools 3.7 / 5.5 KW, • Speed ??of the driven tools max. 4,000 min / -1, • Torque max. 35 Nm, • Tapping without length compensation (Rigid Tapping) • distance between the spindle noses 1130 mm, Max. Turning length 760/200 mm, • Chuck blowout of the right spindle via M command • Footswitch for both chucks • coolant device 4 bar, • Radiator to regulate the coolant Standard accessories: • Automatic central lubrication, • cast construction (Meehanite cast), • X and Y axes as hardened sliding guides, opposite side Turcite coated • Z and A axes with roller guide, • machine panel with workspace lighting, • 1 set of machine documentation, • Integrated alignment screws and shims • CE compliant Optional accessories: Main spindle Hainbuch chuck 65mm is on the machine at the moment Counter spindle Hainbuch collet 65mm is currently on the machine 3 - colored signal lamp (continuous light) for displaying the respective operating state of the machine. 2 x high pressure coolant pump 9 bar (unit price € 1,870.00) Workpiece removal device for drop pieces below the right spindle. The workpiece removal is installed in the lower turret on a station. A conveyor belt transports the parts to the right. It can workpieces up to max. 3.0 kg and a length of 280 mm and a Diameter of 70 mm can be removed. Tool monitoring system (Raku Raku) with Sister tool call by monitoring the drive motors or pre-set tool life revolver. Hinge strap - Chip conveyor to the right. The pitch angle is about 60 degrees, the ejection height 850 mm above the corridor. Bar loader interface with Blok-Skip function Contour Input of the machining contour with angle and radius indication possible. Helical interpolation for driven tools (allows thread milling) Digital display for clamping path monitoring. Digital display, which is located on the front control panel and for easy adjustment of the clamping range is used. There are 13 off standard toolholders and 9 off boring toolholders Thre are 2 off radial driven toolholders
            turning diameter 350 mm
            turning length 800/200 mm
            control Fanuc Series 31i-Model B
            total power requirement 8,5 kW
            Description :
            First machine installation January 2017
            Please note the hours of operation on picture 2!

            Special feature of the machine:
            This machine has 2 spindles and 2 revolvers.
            She is able to work with both revolvers at one
            Spindle (4 axes) to work.

            With collet chuck + collets
            2 x 3 jaw chucks diameter 200 mm for main and counter spindle
            Various standard and driven holders

            The machine is sold without bar loader.

            Basic equipment of the machine

            • 32 bit FANUC CNC control with Manual Guide i (Tiwap) and
            Internet interface
            • 10.4 inch LCD color screen
            • AC-digital FANUC spindle and axis motors

            • Both spindles with C-axis (built-in motors with oil cooler)
            • both spindles with disc brake,
            • Drive power left spindle 15/22 KW,
            • Torque max. 433 Nm,
            • speed max. 4,000 min / -1,
            • Spindle nose A2-8 with protective flange on cylindrical 220 mm,
            Li. Spindle bore 86 mm,
            • Bar passage 76 mm,
            • Clamping cylinder type SMW VNK 170/77,
            • drive power right spindle 11 / 18,5 KW,
            • Torque max. 326 Nm,
            • speed max. 4,000 min / -1,
            • Spindle nose A2- 6 with protection flange on
            cylindrical 170 mm,
            • Right spindle bore 63 mm1
            • Bar passage 51 mm,
            • Clamping cylinder type SMW VNK 130/52,


            • 2 VDI 40 turrets with 15 tool places each
            (Double holders are possible, therefore up to 60 tool slots in the machine)
            • Max. 15 driven tool holders per revolver,
            • Y-axis 100 mm (+/- 50 mm) guided flat in the upper turret,

            • M-function for opening / closing the chucks,
            • Drive power of the driven tools 3.7 / 5.5 KW,
            • Speed ??of the driven tools max. 4,000 min / -1,
            • Torque max. 35 Nm,
            • Tapping without length compensation
            (Rigid Tapping)
            • distance between the spindle noses 1130 mm,
            Max. Turning length 760/200 mm,

            • Chuck blowout of the right spindle via M command
            • Footswitch for both chucks
            • coolant device 4 bar,
            • Radiator to regulate the coolant

            Standard accessories:

            • Automatic central lubrication,
            • cast construction (Meehanite cast),
            • X and Y axes as hardened sliding guides, opposite side Turcite
            coated
            • Z and A axes with roller guide,
            • machine panel with workspace lighting,
            • 1 set of machine documentation,
            • Integrated alignment screws and shims
            • CE compliant

            Optional accessories:

            Main spindle Hainbuch chuck 65mm is on the machine at the moment
            Counter spindle Hainbuch collet 65mm is currently on the machine

            3 - colored signal lamp (continuous light)
            for displaying the respective operating state of the machine.
            2 x high pressure coolant pump 9 bar (unit price € 1,870.00)
            Workpiece removal device for drop pieces below the
            right spindle.
            The workpiece removal is installed in the lower turret on a station.
            A conveyor belt transports the parts to the right.
            It can workpieces up to max. 3.0 kg and a length of 280 mm and a
            Diameter of 70 mm can be removed.
            Tool monitoring system (Raku Raku) with
            Sister tool call by monitoring the drive motors or
            pre-set tool life revolver.
            Hinge strap - Chip conveyor to the right.
            The pitch angle is about 60 degrees,
            the ejection height 850 mm above the corridor.
            Bar loader interface with Blok-Skip function
            Contour
            Input of the machining contour with angle and radius indication possible.
            Helical interpolation for driven tools (allows thread milling)
            Digital display for clamping path monitoring.
            Digital display, which is located on the front control panel
            and for easy adjustment of the clamping range is used.

            There are 13 off standard toolholders and 9 off boring toolholders

            Thre are 2 off radial driven toolholders

          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum DMG-MORI EcoTurn 450 V3


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-18177 · CNC Turning- and Milling Center

          DMG-MORI - EcoTurn 450 V3 - - 2016 - Siemens 840 D SL SHOPTURN

          Technical details
          turning diameter 400 mm︱turning length 600 mm︱control Siemens 840 D SL SHOPTURN ︱turning dia. over face-slide 480 mm︱turning speeds 4000 1/min︱spindle 17,5 / 12,5 kW︱turret head 12 pos.︱turret head drive 4,2 kW︱rotational speed range of tools 4000 1/min︱tailstock quill taper MT 5 ︱quill stroke 500 mm︱rapid travel x/y/z 30 m/min︱bar capacity 65 mm︱workpiece weight max. 800 kg︱total power requirement 27 kVA︱weight of the machine ca. 5,8 t︱
          equipped with: - Siemens 840D SL - 12 driven tools (VDI 40) - Chip conveyor - Tailstock - 3 jaw chuck dia 250mm - Coolant pump 12bar
            turning diameter 400 mm
            turning length 600 mm
            control Siemens 840 D SL SHOPTURN
            turning dia. over face-slide 480 mm
            turning speeds 4000 1/min
            spindle 17,5 / 12,5 kW
            turret head 12 pos.
            turret head drive 4,2 kW
            rotational speed range of tools 4000 1/min
            tailstock quill taper MT 5
            quill stroke 500 mm
            rapid travel x/y/z 30 m/min
            bar capacity 65 mm
            workpiece weight max. 800 kg
            total power requirement 27 kVA
            weight of the machine ca. 5,8 t
            Description :
            equipped with:
            - Siemens 840D SL
            - 12 driven tools (VDI 40)
            - Chip conveyor
            - Tailstock
            - 3 jaw chuck dia 250mm
            - Coolant pump 12bar


          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum TSUGAMI HS 20 M / 5 AX


          • Stiens Werkzeugmaschinen GmbH
          • Mittelweg 92
          • 59302 Oelde
          • Deutschland

          • +49 252283490
            (0049) - 2522 - 8349-20
          • info@stiens.de
            www.stiens.de
          #1039-8571 · CNC Turning- and Milling Center

          TSUGAMI - HS 20 M / 5 AX - - 2015 - Fanuc 31i-B5

          Technical details
          turning diameter 3 - max. 20 mm︱turning length max. 50 mm︱control Fanuc 31i-B5 ︱max. machining diameter 20 mm︱Main spindle: ︱turning speed range - main spindle 200 - 10.000 min/-1︱power capacity - main spindel 2,2 / 3,7 kW︱max. drilling diameter 10 mm︱max. thread diameter M8 ︱C-Axis 360 °︱Subspindle: ︱Spindle speed range subspindle 200 - 12.000 min/-1︱power capacity - Sub spindle 1,5 / 2,2 kW︱max. drilling diameter 7 mm︱max. thread diameter M6 ︱C-Axis 360 °︱Work tool spindle: ︱turning speed range - Tool Spindle 300 - 30.000 min/-1︱power capacity - Tool Spindle 3,7 / 5,5 kW︱max. drilling diameter 7 mm︱
          CNC-Precision-Lathe TSUGAMI - HS 20 M / 5 AX - Swivel-Milling-Spindle - Subspindle - Rear-Side-Machining - Tool-Drive - only ca. 1.000h Spindle-hrs.! Power-On: ca. 10.300h - 5-Axis-Simultaneous-Controlling - 8 Axis (X1/X2/Y/Z1/Z2/C1/C2/B)
            turning diameter 3 - max. 20 mm
            turning length max. 50 mm
            control Fanuc 31i-B5
            max. machining diameter 20 mm
            turning speed range - main spind. 200 - 10.000 min/-1
            power capacity - main spindel 2,2 / 3,7 kW
            max. drilling diameter 10 mm
            max. thread diameter M8
            C-Axis 360 °
            Spindle speed range subspindle 200 - 12.000 min/-1
            power capacity - Sub spindle 1,5 / 2,2 kW
            max. drilling diameter 7 mm
            max. thread diameter M6
            C-Axis 360 °
            turning speed range - Tool Spind. 300 - 30.000 min/-1
            power capacity - Tool Spindle 3,7 / 5,5 kW
            max. drilling diameter 7 mm
            Description :
            CNC-Precision-Lathe
            TSUGAMI - HS 20 M / 5 AX

            - Swivel-Milling-Spindle
            - Subspindle
            - Rear-Side-Machining
            - Tool-Drive
            - only ca. 1.000h Spindle-hrs.! Power-On: ca. 10.300h
            - 5-Axis-Simultaneous-Controlling
            - 8 Axis (X1/X2/Y/Z1/Z2/C1/C2/B)
          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum DMG-MORI SEIKI NT 4250 / 1500 S


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17609 · CNC Turning- and Milling Center

          DMG-MORI SEIKI - NT 4250 / 1500 S - - 2015 - F31i A5

          Technical details
          turning diameter 660 / 350 mm︱turning length 1542 mm︱control F31i A5 ︱swing diameter max. 730 mm︱Main spindle: ︱Max. rpm 4000 min/-1︱transmission ratio 2 ︱power capacity - main spindel 26 / 22 kW︱Bar feed 80 mm︱usable bar diameter 80 mm︱spindle nose JIS A2-8 ︱C-Axis 0,001 °︱chucking diameter 300 mm︱Subspindel: ︱Max. rpm 4000 min/-1︱transmission ratio 2 ︱power capacity - Sub spindle 26 / 22 kW︱Bar feed max. 80 mm︱usable bar diameter 80 mm︱spindle nose JIS A2-8
          equipped with: - CNC Control F31i A5 - (Spindle 1) KITAGAWA 12" Hollow Chuck - (Spindle 2) KITAGAWA 12" Hollow Chuck - Tool spindle full indexing specifications - Spindle 2 tailstock specifications - Tool storage capacity 40 tools(Capto C6) - Coolant gun - Super-high pressure coolant system(7.0MPa) - Coolant cooling system (separate type) - Mist collector I/F(duct only, dia.200mm) - Chip conveyor (right discharge, hinge type)(/1500) - In-machine workpiece tool presetter for tool spindle(in-out type) - Direct scal feedback for X-axis(tool spindle) - Direct scal feedback for Y-axis(tool spindle) - Direct scal feedback for Z-axis(tool spindle)(/1500) - Chuck foot switch(double) for Main and Counter spindle - Signal lower 3 layers(Red, yellow, green) LED type - Total counter - Manual pulse generator(separate type) - Cooling unit for electrical cabinet - Programming resolution mutipiled by 1/10 - Memory card for Data server(CF card 1 GB) - Playback - Spindle 1 hobbing function - Automatic corner override - Coordinate system rotation - Addition of optional block skip (soft key type 2-9) - Direct drawing dimension programming - Interruption type custom macro - Tool offsets 480 sets in total - KCs mark 65kVA E30373 EMC(including cable) - Invo-Milling package Capto C6
            turning diameter 660 / 350 mm
            turning length 1542 mm
            control F31i A5
            swing diameter max. 730 mm
            Max. rpm 4000 min/-1
            transmission ratio 2
            power capacity - main spindel 26 / 22 kW
            Bar feed 80 mm
            usable bar diameter 80 mm
            spindle nose JIS A2-8
            C-Axis 0,001 °
            chucking diameter 300 mm
            Max. rpm 4000 min/-1
            transmission ratio 2
            power capacity - Sub spindle 26 / 22 kW
            Bar feed max. 80 mm
            usable bar diameter 80 mm
            spindle nose JIS A2-8
            Description :
            equipped with:
            - CNC Control F31i A5

            - (Spindle 1) KITAGAWA 12" Hollow Chuck
            - (Spindle 2) KITAGAWA 12" Hollow Chuck
            - Tool spindle full indexing specifications
            - Spindle 2 tailstock specifications
            - Tool storage capacity 40 tools(Capto C6)
            - Coolant gun
            - Super-high pressure coolant system(7.0MPa)
            - Coolant cooling system (separate type)
            - Mist collector I/F(duct only, dia.200mm)
            - Chip conveyor (right discharge, hinge type)(/1500)
            - In-machine workpiece tool presetter for tool spindle(in-out type)
            - Direct scal feedback for X-axis(tool spindle)
            - Direct scal feedback for Y-axis(tool spindle)
            - Direct scal feedback for Z-axis(tool spindle)(/1500)
            - Chuck foot switch(double) for Main and Counter spindle
            - Signal lower 3 layers(Red, yellow, green) LED type
            - Total counter
            - Manual pulse generator(separate type)
            - Cooling unit for electrical cabinet
            - Programming resolution mutipiled by 1/10
            - Memory card for Data server(CF card 1 GB)
            - Playback
            - Spindle 1 hobbing function
            - Automatic corner override
            - Coordinate system rotation
            - Addition of optional block skip (soft key type 2-9)
            - Direct drawing dimension programming
            - Interruption type custom macro
            - Tool offsets 480 sets in total
            - KCs mark 65kVA E30373 EMC(including cable)
            - Invo-Milling package Capto C6



          Datasheet
          Request / Contact
          gebruikte Draaibanken CNC Draai- en Freescentrum MEKITURN TNC890 X3000


          • Christoph Busch GmbH
          • Dieselstr. 22
          • 41352 Korschenbroich
          • Deutschland

          • +49 (0) 2182 570 5930
            +49 (0) 2182 5785202
          • mail@busch-gruppe.de
            www.busch-gruppe.de
          #2052-05076 · CNC Turning- and Milling Center

          MEKITURN - TNC890 X3000 - - 2015 - Heidenhain manual plus620

          Technical details
          serial number B5155730E ︱control Heidenhain manual plus620 ︱centre height 345 mm︱ 890 mm︱bed width 480 mm︱turning length 3.000 mm︱spindle turning speed range 1.500 U/min︱spindle bore diameter 104 mm︱spindle drive 24 kW︱chucking diameter 300 mm︱ 400 ︱rapid traverse X-axis 5 m/min︱rapid traverse Z-axis 10 m/min︱coolant ja ︱chip conveyor ja
            serial number B5155730E
            control Heidenhain manual plus620
            centre height 345 mm
            890 mm
            bed width 480 mm
            turning length 3.000 mm
            spindle turning speed range 1.500 U/min
            spindle bore diameter 104 mm
            spindle drive 24 kW
            chucking diameter 300 mm
            400
            rapid traverse X-axis 5 m/min
            rapid traverse Z-axis 10 m/min
            coolant ja
            chip conveyor ja
          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum TAKISAWA TY 2000 YSG


          • Knops Werkzeugmaschinen
          • Ronsdorfer Str. 143
          • 40233 Düsseldorf
          • Deutschland

          • 0211 8793140
            0211 8793134
          • maschinen@knops.de
            www.knops.de
          #1022-E05678 · CNC Turning- and Milling Center

          TAKISAWA - TY 2000 YSG - - 2014 - FANUC 31i-A

          Technical details
          turning diameter 100 mm︱turning length - mm︱control FANUC 31i-A ︱drive capacity - spindle motor 11/15 kW︱spindle nose A 2-6 ︱spindle bore 77 mm︱bar capacity 65 mm︱clamping cylinder Typ SMW VNK 130-52 ︱Motor power 3,7 / 7,5 kw︱coolant ︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          32 bit FANUC CNC control, counter spindle, driven tools and 2 x C-axis. Travel of the Y-axis 100 mm (+/- 50mm), AC-digital FANUC spindle and axis motors, 15-fold turret with Direct input - drive power main spindle 11/15 kW, Max. Torque 139 Nm, spindle nose A2-6, spindle bore 77 mm, Bar passage 65 mm, clamping cylinder type SMW VNK 150-67, Drive power counter spindle 7.5 / 11 kW, max. Torque 102 Nm, Spindle nose A 2-6, spindle bore 73 mm, Bar passage 60 mm, clamping cylinder type SMW VNK 130-52 Drive power of the driven tools 3.7 / 7.5 kW, Max. Torque 35 Nm, speed of the driven tools 6,000 rpm, Foot switch for 2 chucks, coolant device - Type A gantry loader, magazine on the right, gripper hand with 2 chucks max. 2 x 6 kg, 16-fold workpiece pallet magazine for stacking, Workpiece diameter max. of 160 mm, max. stacking height per pallet 450 mm, Max. Workpiece weight per pallet 40 kg, 3-color signal tower, automatic machine shutdown, automatic central lubrication, cast construction (Meehanite casting), hardened sliding guides, opposite side coated with Turcite, Machine cladding and work room lighting, machine documentation, integrated alignment screws and washers, Operating instructions in German. - 1 speed increase to 5,000 rpm Increase the standard speed of 4,100 rpm to 5,000 rpm with 114 Nm the main spindle. - 1 piece of SMW hydr. Power chuck BBM-210 including draw tube and installation. - 1 piece of SMW hydr. Power chuck BHD 210/52. - 1 piece of lining - there is a blow-out unit above the lining Screwing with a tube, from which controlled via M command, Air is blown out. - 2 pieces facing tool holder for the HPI turret. - 2 longitudinal swivel holders for the HPI turret. - 4 pieces plan and Longitudinal rotating holder double & on both sides for the HPI turret. Can hold 2 steels for each side. Y-axis travel necessary. - 4 pieces combination holder D40x70 for the HPI turret. - 3 x driven tool holder X-axis for the HPI turret. Collet ER32 - 2 driven Z-axis tool holders (double) for the HPI turret. Collet ER32 - 1 piece bar feeder interface without block-skip function (LNS type) - 1 piece parts catcher Workpiece removal device for bar parting. The workpiece removal is programmed using the M function and hydraulically controlled. There is an opening in the door and on the Outside a container. The workpieces pass through this opening in the container, which can be closed with a lid. Workpiece diameter 76 mm, length 180 mm, weight 2.0 kg - 1 piece M - function to open / close the feed. Monitoring is carried out by 2 pressure switches. - 1 piece of 3 - colored signal lamp (steady light) to indicate the current operating status of the machine. - 1 piece of high pressure coolant pump 9 bar (1 piece) per turret or A pump is required for the milling spindle. - 1 piece of 25 bar booster pump with motor is in series with the existing pump switched so that you can choose between two pressure levels. 2.6 kW, F, IP 55 IE2, 3 x 200V, 50Hz, special voltage 200V, 3 ~ three-phase delta 2-pole - 1 piece hinged belt - chip conveyor to the rear. The pitch angle is approx. 60 °, the discharge height is approx. 930 mm above the floor. The chip conveyor is used to remove mostly short-chipping steel - Suitable materials. - 1 piece of tool setter (manual) for measuring the tools in the turret. The measuring arm is in the working area of ??the machine, the sensors behind a cover. It can be unfolded by hand and the one to be measured Tool moved against the sensors using the feed buttons in the feed become. After the contact has been made, the feed is stopped and the determined one The value is automatically transferred to the correction memory. - 1 piece workpiece counter resettable. With this counter the required Number of pieces can be set. After reaching the number of pieces, the machine will stopped. - 1 piece automatic machine shutdown. With this function, an upcoming alarm or after reaching a preset number of pieces (Workpiece counter option), the machine is switched off via the main switch. - 1 piece tool monitoring system (Raku Raku) with sister tool call by monitoring the drive motors or preset tool life per revolver. Attention for machines with several turrets Function required per turret. - 1 piece of Tiwap, Takisawa dialog programming system only in connection with Fanuc 31i-A possible. - 1 piece of helical interpolation for driven tools. - 1 piece of additional customer macro variables # 100 to # 199 and # 500 to # 999. - 1 piece of contour drawing programming, input of the machining contour with angle and radius specification possible. - 1 piece arload BK105L - bar loading magazine, Bar length: 200 mm to approx.1,600 mm (depending on the spindle length), Rod diameter: Ø4 mm to - Ø105 mm (depending on the feed rod), Profile type: round and hexagon (square option), feed path: max. 1,620 mm, Bar weight: max. 80 kg, operating modes: regulated, stop, high-speed Positioning accuracy: from +/- 0.1 mm, feed rod: Ø17 mm (optional Ø8andØ23) material storage: 600 mm ,, spindle heights: 900 mm - 1.200 mm, Power supply: 400V, 50 / 60Hz; 220V, 50/60 Hz, dead weight 590 kg - 1 piece reducing tube for diameter 34-36 mm - 1 piece reducing tube for diameters 30-32 mm - 1 piece reducing tube for diameter 20-22 mm - Running time of the control is 9867 hours - The running time of the machine is 3088 hours - The machine can be viewed under power
            turning diameter 100 mm
            turning length - mm
            control FANUC 31i-A
            drive capacity - spindle motor 11/15 kW
            spindle nose A 2-6
            spindle bore 77 mm
            bar capacity 65 mm
            clamping cylinder Typ SMW VNK 130-52
            Motor power 3,7 / 7,5 kw
            Description :
            32 bit FANUC CNC control, counter spindle, driven tools
            and 2 x C-axis. Travel of the Y-axis 100 mm (+/- 50mm),
            AC-digital FANUC spindle and axis motors, 15-fold turret with
            Direct input - drive power main spindle 11/15 kW,
            Max. Torque 139 Nm, spindle nose A2-6, spindle bore 77 mm,
            Bar passage 65 mm, clamping cylinder type SMW VNK 150-67,
            Drive power counter spindle 7.5 / 11 kW, max. Torque 102 Nm,
            Spindle nose A 2-6, spindle bore 73 mm,
            Bar passage 60 mm, clamping cylinder type SMW VNK 130-52
            Drive power of the driven tools 3.7 / 7.5 kW,
            Max. Torque 35 Nm, speed of the driven tools 6,000 rpm,
            Foot switch for 2 chucks, coolant device

            - Type A gantry loader, magazine on the right, gripper hand with 2 chucks max.
            2 x 6 kg, 16-fold workpiece pallet magazine for stacking,
            Workpiece diameter max. of 160 mm, max. stacking height per pallet 450 mm,
            Max. Workpiece weight per pallet 40 kg,
            3-color signal tower, automatic machine shutdown,
            automatic central lubrication, cast construction (Meehanite casting),
            hardened sliding guides, opposite side coated with Turcite,
            Machine cladding and work room lighting, machine documentation,
            integrated alignment screws and washers,
            Operating instructions in German.

            - 1 speed increase to 5,000 rpm
            Increase the standard speed of 4,100 rpm to 5,000 rpm with 114 Nm
            the main spindle.

            - 1 piece of SMW hydr. Power chuck BBM-210 including draw tube and installation.

            - 1 piece of SMW hydr. Power chuck BHD 210/52.

            - 1 piece of lining - there is a blow-out unit above the lining
            Screwing with a tube, from which controlled via M command,
            Air is blown out.

            - 2 pieces facing tool holder for the HPI turret.

            - 2 longitudinal swivel holders for the HPI turret.

            - 4 pieces plan and Longitudinal rotating holder double & on both sides for the
            HPI turret.
            Can hold 2 steels for each side. Y-axis travel necessary.

            - 4 pieces combination holder D40x70 for the HPI turret.

            - 3 x driven tool holder X-axis for the HPI turret.
            Collet ER32

            - 2 driven Z-axis tool holders (double) for the HPI turret.
            Collet ER32

            - 1 piece bar feeder interface without block-skip function (LNS type)

            - 1 piece parts catcher
            Workpiece removal device for bar parting.
            The workpiece removal is programmed using the M function and
            hydraulically controlled. There is an opening in the door and on the
            Outside a container. The workpieces pass through this opening
            in the container, which can be closed with a lid.
            Workpiece diameter 76 mm, length 180 mm, weight 2.0 kg

            - 1 piece M - function to open / close the feed.
            Monitoring is carried out by 2 pressure switches.

            - 1 piece of 3 - colored signal lamp (steady light) to indicate the
            current operating status of the machine.

            - 1 piece of high pressure coolant pump 9 bar (1 piece) per turret or
            A pump is required for the milling spindle.

            - 1 piece of 25 bar booster pump with motor is in series with the
            existing pump switched so that you can choose between two pressure levels.
            2.6 kW, F, IP 55 IE2, 3 x 200V, 50Hz, special voltage 200V,
            3 ~ three-phase delta 2-pole

            - 1 piece hinged belt - chip conveyor to the rear. The pitch angle
            is approx. 60 °, the discharge height is approx. 930 mm above the floor.
            The chip conveyor is used to remove mostly short-chipping steel -
            Suitable materials.

            - 1 piece of tool setter (manual) for measuring the tools in the turret.
            The measuring arm is in the working area of ??the machine, the sensors behind
            a cover. It can be unfolded by hand and the one to be measured
            Tool moved against the sensors using the feed buttons in the feed
            become. After the contact has been made, the feed is stopped and the
            determined one
            The value is automatically transferred to the correction memory.

            - 1 piece workpiece counter resettable. With this counter the required
            Number of pieces can be set. After reaching the number of pieces, the machine
            will stopped.

            - 1 piece automatic machine shutdown. With this function,
            an upcoming alarm or after reaching a preset number of pieces
            (Workpiece counter option), the machine is switched off via the main switch.

            - 1 piece tool monitoring system (Raku Raku) with sister tool call
            by monitoring the drive motors or preset tool life
            per revolver. Attention for machines with several turrets
            Function required per turret.

            - 1 piece of Tiwap, Takisawa dialog programming system only in connection with
            Fanuc 31i-A possible.

            - 1 piece of helical interpolation for driven tools.

            - 1 piece of additional customer macro variables # 100 to # 199 and # 500 to #
            999.

            - 1 piece of contour drawing programming, input of the machining contour with
            angle and radius specification possible.

            - 1 piece arload BK105L - bar loading magazine,
            Bar length: 200 mm to approx.1,600 mm (depending on the spindle length),
            Rod diameter: Ø4 mm to - Ø105 mm (depending on the feed rod),
            Profile type: round and hexagon (square option), feed path: max. 1,620 mm,
            Bar weight: max. 80 kg, operating modes: regulated, stop, high-speed
            Positioning accuracy: from +/- 0.1 mm, feed rod: Ø17 mm
            (optional Ø8andØ23) material storage: 600 mm ,, spindle heights: 900 mm -
            1.200 mm, Power supply: 400V, 50 / 60Hz; 220V, 50/60 Hz, dead weight 590 kg

            - 1 piece reducing tube for diameter 34-36 mm

            - 1 piece reducing tube for diameters 30-32 mm

            - 1 piece reducing tube for diameter 20-22 mm

            - Running time of the control is 9867 hours
            - The running time of the machine is 3088 hours

            - The machine can be viewed under power


          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum SPINNER TTC 300 52 SMMCY


          • STEINHAND GmbH
          • Wiehagen 10
          • 45472 Mülheim a.d. Ruhr
          • Deutschland

          • +49 (0) 208 / 78 239 760
            +49 (0) 208 / 78 239 685
          • info@steinhand.de
            www.steinhand.de
          #2026-1185 · CNC Turning- and Milling Center

          SPINNER - TTC 300 52 SMMCY - - 2014 - Fanuc 31i

          Technical details
          max. swing dia. ~ 400 mm︱max. turning diameter ~ 200 mm︱Max. Turning length ~ 400 mm︱travel -x1 axis 180 mm︱travel -x2 axis 110 mm︱travel -z axis 450 mm︱control Fanuc 31i ︱- - - turning spindle 1 - - - - - - - - -︱max. turning speeds 5.000 U/min.︱chucking diameter 210 mm︱spindle passage 42 mm︱- - - turning spindle 2 - - - - - - - - -︱max. turning speeds 7.000 U/min︱chucking diameter 130 mm︱weight ~ 4.600 kg︱Dimensions (L x W x H) 2.500 x 1.900 x 2.165 mm︱
          SPINNER TTC300 52 SMMCY The machine is in a good condition - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TTC300 | TTC300-52 | TTC 300-52
            max. swing dia. ~ 400 mm
            max. turning diameter ~ 200 mm
            Max. Turning length ~ 400 mm
            travel -x1 axis 180 mm
            travel -x2 axis 110 mm
            travel -z axis 450 mm
            control Fanuc 31i
            - - - turning spindle 1 - - - - - - - - -
            max. turning speeds 5.000 U/min.
            chucking diameter 210 mm
            spindle passage 42 mm
            - - - turning spindle 2 - - - - - - - - -
            max. turning speeds 7.000 U/min
            chucking diameter 130 mm
            weight ~ 4.600 kg
            Dimensions (L x W x H) 2.500 x 1.900 x 2.165 mm
            Description :
            SPINNER TTC300 52 SMMCY

            The machine is in a good condition

            - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
            #Tags: TTC300 | TTC300-52 | TTC 300-52
          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum INDEX ABC 65


          • MS Maschinenhandel GmbH
          • Unterdorf 34
          • 6532 Ladis
          • Österreich

          • +43 (0) 5472 219 07
            +43 (0) 5472 219 07 22
          • info@ms-maschinen.at
            www.ms-maschinen.at
          #2034-40948 · CNC Turning- and Milling Center

          INDEX - ABC 65 - - 2014 - /

          Technical details
          turning diameter 65 mm︱turning length / mm︱control / ︱- number of spindles 2 ︱- - counter spindle: yes ︱- number of turrets 2 ︱- live positions: yes ︱WORKING RANGE TURNING ︱- turning diameter (max) 65 mm︱- bar diameter (max) 65 mm︱MAIN SPINDLE ︱- spindle revolutions (min) 6000 /min︱- drive power 4.2 kW︱- spindle torque 10 Nm︱COUNTER SPINDLE ︱- spindle revolutions (max) 6000 /min︱- drive power S6 40% 20 kW︱- drive power S6 40% 27 kW︱- spindle torque S6 40% 105 Nm︱- spindle torque S1 100% 145 Nm︱
            turning diameter 65 mm
            turning length / mm
            control /
            - number of spindles 2
            - number of turrets 2
            - turning diameter (max) 65 mm
            - bar diameter (max) 65 mm
            - spindle revolutions (min) 6000 /min
            - drive power 4.2 kW
            - spindle torque 10 Nm
            - spindle revolutions (max) 6000 /min
            - drive power S6 40% 20 kW
            - drive power S6 40% 27 kW
            - spindle torque S6 40% 105 Nm
            - spindle torque S1 100% 145 Nm
          Datasheet
          Request / Contact
          gebruikte Draaibanken CNC Draai- en Freescentrum MTRENT T30MC


          • Heinz Sanders GmbH
          • Fresenburger Weg 4
          • 49779 Niederlangen
          • Deutschland

          • +49 (0) 5939 9406 40
            +49 (0) 5939 9406 50
          • maschinen@heinz-sanders.de
            www.heinz-sanders.de
          #1125-7101 · CNC Turning- and Milling Center

          MTRENT - T30MC - - 2014 - Sinumerik 828 D SIEMENS

          Technical details
          turning diameter 330 mm︱turning length 669 mm︱control Sinumerik 828 D SIEMENS ︱swing diameter 600 mm︱travel -x axis 260 mm︱travel -z axis 762 mm︱spindle speed: 3400 1/min︱taper in tailstock-quill 4 MK︱tailstock travel 627 mm︱diameter of quill 85 mm︱rapid traverse X-axis 20 m/min︱rapid traverse Z-axis 24 m/min︱total power requirement 41 kW︱weight of the machine ca. 5,7 t︱dimensions of the machine ca. 3,70 x 1,80 x 2,00 m︱
            turning diameter 330 mm
            turning length 669 mm
            control Sinumerik 828 D SIEMENS
            swing diameter 600 mm
            travel -x axis 260 mm
            travel -z axis 762 mm
            spindle speed: 3400 1/min
            taper in tailstock-quill 4 MK
            tailstock travel 627 mm
            diameter of quill 85 mm
            rapid traverse X-axis 20 m/min
            rapid traverse Z-axis 24 m/min
            total power requirement 41 kW
            weight of the machine ca. 5,7 t
            dimensions of the machine ca. 3,70 x 1,80 x 2,00 m
          Datasheet
          Request / Contact
          gebruikte Draaibanken CNC Draai- en Freescentrum MAZAK INTEGREX i400


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-18320 · CNC Turning- and Milling Center

          MAZAK - INTEGREX i400 - - 2014 - Mazatrol Matrix 2

          Technical details
          turning diameter 760 mm︱workpiece length - max. 1524 mm︱control Mazatrol Matrix 2 ︱swing diameter 760 mm︱clamping range for bar work 102 mm︱workpiece weight 1000 kg︱------------ MAIN SPINDLE ------------ ︱turning speeds 35 - 3300 U/min︱passage of spindle 112 mm︱c-axis 1 ︱spindle motor 30 kW︱travel -x axis 630 mm︱travel -y axis 230 mm︱travel -z axis 1585 mm︱rapid travel x/y/z 38000 x 26000x 38000 mm/min︱milling spindle ︱spindle motor 18,5 kW︱milling head speed 12000 U/min︱weight of the machine ca. 12,7 t︱dimensions of the machine ca. 4,9 x 2,4 x 2,8 m︱
          - CNC Control Mazatrol Matrix 2 - ATC 20-fold
            turning diameter 760 mm
            workpiece length - max. 1524 mm
            control Mazatrol Matrix 2
            swing diameter 760 mm
            clamping range for bar work 102 mm
            workpiece weight 1000 kg
            turning speeds 35 - 3300 U/min
            passage of spindle 112 mm
            c-axis 1
            spindle motor 30 kW
            travel -x axis 630 mm
            travel -y axis 230 mm
            travel -z axis 1585 mm
            rapid travel x/y/z 38000 x 26000x 38000 mm/min
            spindle motor 18,5 kW
            milling head speed 12000 U/min
            weight of the machine ca. 12,7 t
            dimensions of the machine ca. 4,9 x 2,4 x 2,8 m
            Description :

            - CNC Control Mazatrol Matrix 2
            - ATC 20-fold
          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum DMG MORI SEIKI CTX 510 ecoline V3


          • Stiens Werkzeugmaschinen GmbH
          • Mittelweg 92
          • 59302 Oelde
          • Deutschland

          • +49 252283490
            (0049) - 2522 - 8349-20
          • info@stiens.de
            www.stiens.de
          #1039-8629 · CNC Turning- and Milling Center

          DMG MORI SEIKI - CTX 510 ecoline V3 - - 2013 - 840 D sl Siemens

          Technical details
          turning diameter max. 465 mm︱turning length 1.050 mm︱control 840 D sl Siemens︱swing diameter 680 mm︱Main spindle: ︱turning speed range - main spindle max. 3.250 min/-1︱power capacity - main spindel 33 kW︱max. Torque 630 Nm︱spindle nose 220h5 ︱chucking diameter 250 - max. 315 mm︱spindle bearing diameter 140 mm︱spindle bore 102,5 mm︱max. usable bar diameter 90 mm︱C-Axis 0,001 °︱turret: ︱number of toolpositions 12 pos.︱tool taper VDI 40 ︱Driven Tool Stations: ︱Number of driven toolspositions 12 pos.︱tool spindle speed range max. 4.000 min/-1︱
          CNC - Turning- and Millingcenter DMG MORI SEIKI - CTX 510 ecoline V3 - ca. 5.400 h Spindle-Hours! - Tool-Drive - ShopTurn
            turning diameter max. 465 mm
            turning length 1.050 mm
            control 840 D sl Siemens
            swing diameter 680 mm
            turning speed range - main spind. max. 3.250 min/-1
            power capacity - main spindel 33 kW
            max. Torque 630 Nm
            spindle nose 220h5
            chucking diameter 250 - max. 315 mm
            spindle bearing diameter 140 mm
            spindle bore 102,5 mm
            max. usable bar diameter 90 mm
            C-Axis 0,001 °
            number of toolpositions 12 pos.
            tool taper VDI 40
            Number of driven toolspositions 12 pos.
            tool spindle speed range max. 4.000 min/-1
            Description :
            CNC - Turning- and Millingcenter
            DMG MORI SEIKI - CTX 510 ecoline V3

            - ca. 5.400 h Spindle-Hours!
            - Tool-Drive
            - ShopTurn


          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum DMG MORI SEIKI NLX 2500 SY / 700


          • Stiens Werkzeugmaschinen GmbH
          • Mittelweg 92
          • 59302 Oelde
          • Deutschland

          • +49 252283490
            (0049) - 2522 - 8349-20
          • info@stiens.de
            www.stiens.de
          #1039-8508 · CNC Turning- and Milling Center

          DMG MORI SEIKI - NLX 2500 SY / 700 - - 2013 - M 730 BM MAPPS IV

          Technical details
          turning diameter max. 366 mm︱turning length 705 mm︱control M 730 BM MAPPS IV︱greates pass round over bed 920 mm︱Swing dia. over traverse guideway 742 mm︱Main spindle: ︱turning speed range - main spindle 4.000 min/-1︱power capacity - main spindel 18,5 / 15 kW︱spindle nose JIS A-8 ︱spindle bearing diameter 140 mm︱spindle bore 91 mm︱max. usable bar diameter 80 mm︱Subspindel: ︱Spindle speed range subspindle 6.000 min/-1︱power capacity - Sub spindle 11 / 7,5 kW︱spindle nose JIS A-5 ︱spindle bearing diameter 85 mm︱spindle bore 43 mm︱max. usable bar diameter ( - ) mm︱axis stroke:
          CNC - Turning- and MillingCenter DMG MORI SEIKI - NLX 2500 SY / 700
            turning diameter max. 366 mm
            turning length 705 mm
            control M 730 BM MAPPS IV
            greates pass round over bed 920 mm
            Swing dia. over traverse guidewa. 742 mm
            turning speed range - main spind. 4.000 min/-1
            power capacity - main spindel 18,5 / 15 kW
            spindle nose JIS A-8
            spindle bearing diameter 140 mm
            spindle bore 91 mm
            max. usable bar diameter 80 mm
            Spindle speed range subspindle 6.000 min/-1
            power capacity - Sub spindle 11 / 7,5 kW
            spindle nose JIS A-5
            spindle bearing diameter 85 mm
            spindle bore 43 mm
            max. usable bar diameter ( - ) mm
            Description :
            CNC - Turning- and MillingCenter
            DMG MORI SEIKI - NLX 2500 SY / 700

          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum EMCO Hyperturn 110 SM2Y


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-17869 · CNC Turning- and Milling Center

          EMCO - Hyperturn 110 SM2Y - - 2013 - Siemens 840 D SL

          Technical details
          turning diameter 710 mm︱turning length 1700 mm︱control Siemens 840 D SL ︱BASIC FUNCTIONS ︱- number of spindles 2 ︱- number of turrets 2 ︱- live positions: yes ︱- number of c-axes ︱- number of y-axes 1 ︱WORKING RANGE TURNING ︱- swing diameter (max) 720 mm︱- turning diameter (max) 710 mm︱- worpiece length max. 1700 mm︱MAIN SPINDLE ︱- spindle revolutions (min) 0 /min︱- spindle revolutions (max) 3000 /min︱spindle motor 52 kW︱COUNTER SPINDLE ︱- spindle revolutions (min) 0 /min︱- spindle revolutions (max) 2500 /min︱
          CNC turning centre for the complete machining of turned and milled parts with 2 spindles, 2 tool systems, 6 linear axes and 2 rotary axes Unused machine!! - CNC control Sinumerik 840 Dsl - Main & counter spindle - 6 Linear axes - 2 x rotary axes - 2 tool turrets with: -- 12 driven tools (VDI 40) -- 10,5 KW - 3000 rpm - Y-axis - cooling unit - chip conveyor - belt filter system - extraction unit - glass scales
            turning diameter 710 mm
            turning length 1700 mm
            control Siemens 840 D SL
            - number of spindles 2
            - number of turrets 2
            - number of y-axes 1
            - swing diameter (max) 720 mm
            - turning diameter (max) 710 mm
            - worpiece length max. 1700 mm
            - spindle revolutions (max) 3000 /min
            spindle motor 52 kW
            - spindle revolutions (max) 2500 /min
            Description :
            CNC turning centre for the complete machining of turned and milled parts with
            2 spindles, 2 tool systems, 6 linear axes and 2 rotary axes
            Unused machine!!

            - CNC control Sinumerik 840 Dsl
            - Main & counter spindle
            - 6 Linear axes
            - 2 x rotary axes
            - 2 tool turrets with:
            -- 12 driven tools (VDI 40)
            -- 10,5 KW - 3000 rpm
            - Y-axis
            - cooling unit
            - chip conveyor
            - belt filter system
            - extraction unit
            - glass scales

          Datasheet
          Request / Contact
          gebruikte draaibanken CNC draai- en freescentrum MAZAK INTEGREX J 200


          • MS Maschinenhandel GmbH
          • Unterdorf 34
          • 6532 Ladis
          • Österreich

          • +43 (0) 5472 219 07
            +43 (0) 5472 219 07 22
          • info@ms-maschinen.at
            www.ms-maschinen.at
          #2034-40768 · CNC Turning- and Milling Center

          MAZAK - INTEGREX J 200 - - 2013 - MAZATROL MATRIX NEXUS 2

          Technical details
          turning diameter 500 mm︱turning length 500 mm︱control MAZATROL MATRIX NEXUS 2 ︱BASIC FUNCTIONS ︱- number of spindles 1 ︱- number of c-axes 1 ︱- number of y-axes 1 ︱- number of b-axes 1 ︱WORKING RANGE TURNING ︱- turning diameter (max) 500 mm︱- bar diameter (max) 51 mm︱- worpiece length max. 500 mm︱MAIN SPINDLE ︱- spindle revolutions (max) 5000 /min︱- c-axis: yes ︱X/Z SLIDE ︱- Z-axis travel 550 mm︱- X-axis travel 450 mm︱- Y-axis travel 200 mm︱- - drive power 7.5 kW︱
            turning diameter 500 mm
            turning length 500 mm
            control MAZATROL MATRIX NEXUS 2
            - number of spindles 1
            - number of c-axes 1
            - number of y-axes 1
            - number of b-axes 1
            - turning diameter (max) 500 mm
            - bar diameter (max) 51 mm
            - worpiece length max. 500 mm
            - spindle revolutions (max) 5000 /min
            - Z-axis travel 550 mm
            - X-axis travel 450 mm
            - Y-axis travel 200 mm
            - - drive power 7.5 kW
          Datasheet
          Request / Contact


          A CNC Turning and Milling Center from LagerMaschinen
          A CNC turning and milling center from LagerMaschinen - good for business

          A CNC turning and milling center from LagerMaschinen will certainly be a great advantage to your small or medium-sized business. Choose from a CNC turning and milling center that fits your needs exactly. A CNC turning and milling center uses either one of multiple axes to calibrate and work wood metal or other hard materials. When purchasing a CNC turning and milling center from LagerMaschinen you'll be able to ensure quality control as well as to speak directly with sellers. Let LagerMaschinen's qualified experts assist you in your search for your next business machine.

          CNC turning and milling center from LagerMaschinen

          A CNC turning and milling center (also known as a lathe) can be used for many different purposes. No matter what your end product a CNC turning and milling center from LagerMaschinen is just what you need. Used machines are more economically viable as well as kinder to the environment. A CNC turning and milling center from LagerMaschinen could be the logical solution for your production concerns. By purchasing your CNC turning and milling center through LagerMaschinen and its team of experts and professionals you'll not only find precisely what you're looking for but will also ensure that it lasts for a lifetime.

          CNC turning and milling center - the most logical choice

          No matter what type of CNC turning and milling center you're looking for LagerMaschinen has what you need. Log on create and account and start shopping at LagerMaschinen today.
